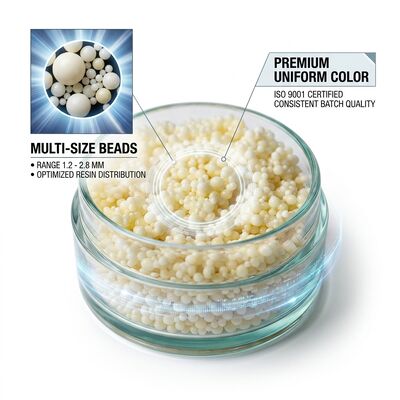

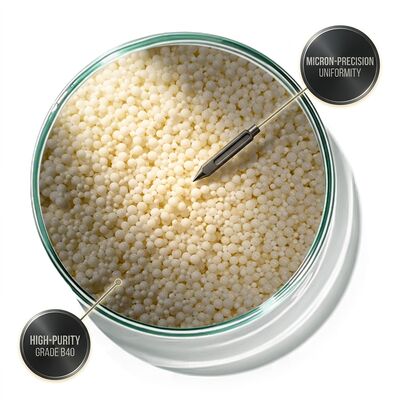

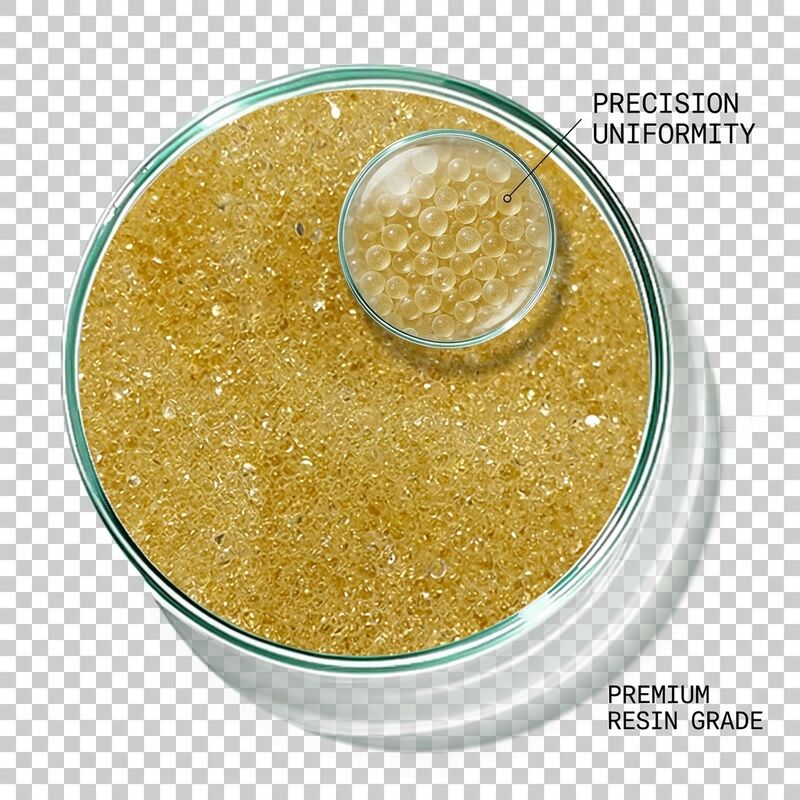

High Operating Capacity Water Softening Cation Exchange Resin for Efficient Hard Water Treatment Applications

The WS-CER-001 is a high-performance strong acid cation exchange resin specifically formulated for efficient water softening and hardness removal across residential, commercial, and industrial applications. Built on a sulfonated styrene-divinylbenzene copolymer matrix with sodium-form sulfonic acid functional groups, this gel-type resin delivers outstanding calcium and magnesium ion exchange capacity with remarkably low hardness leakage. Its optimized cross-linking density and uniform bead morphology ensure rapid ion exchange kinetics, high mechanical durability, and exceptional operating capacity over thousands of regeneration cycles.

Manufactured in our ISO 9001 certified production facility with advanced sulfonation process control, WS-CER-001 consistently achieves a total exchange capacity exceeding 2.0 eq/L in sodium form, placing it among the highest-capacity softening resins available in the global market. The resin is fully compliant with NSF/ANSI 61 standards for drinking water system components, making it suitable for potable water treatment in municipal plants, commercial buildings, hotels, hospitals, and residential point-of-entry systems. With thermal stability up to 120°C and a full pH operating range of 0-14, WS-CER-001 provides reliable softening performance even in challenging process environments including boiler feed pretreatment, cooling tower makeup, and industrial laundry operations.

• High Operating Capacity: Total exchange capacity of ≥ 2.0 eq/L (Na+ form) delivers maximum hardness removal per unit volume, enabling longer service runs between regenerations and significantly reducing salt consumption and backwash water requirements in large-scale softening plants.
• Excellent Ion Removal: Sulfonic acid functional groups exhibit strong affinity for divalent cations, achieving > 99% calcium (Ca2+) and magnesium (Mg2+) removal efficiency with typical hardness leakage below 1 mg/L as CaCO3 in properly designed single-column systems and sub-0.1 mg/L in polishing configurations.
• Superior Regeneration Efficiency: Optimized bead porosity and cross-linking architecture enable rapid sodium ion diffusion during brine regeneration, achieving > 95% capacity recovery at salt dosages as low as 80 g NaCl per liter of resin, minimizing chemical waste and operating costs.
• Exceptional Mechanical Durability: High whole bead count (≥ 90%) combined with excellent osmotic shock resistance minimizes bead fracturing and fines generation during repeated exhaustion-regeneration cycling, extending resin bed service life beyond 10 years in typical municipal softening applications.
• Fast Exchange Kinetics: Uniform particle size distribution (0.315-1.25 mm, ≥ 95%) with low uniformity coefficient (≤ 1.6) ensures consistent flow distribution and rapid mass transfer, allowing higher service flow rates of up to 40 BV/h without compromising hardness breakthrough performance.
• Wide Temperature and pH Tolerance: Stable operation across pH 0-14 and temperatures up to 120°C in sodium form, enabling deployment in hot process water softening, high-temperature condensate treatment, and chemically aggressive industrial streams without resin degradation.
• NSF/ANSI 61 Certified: Independently tested and certified for use in drinking water treatment systems, ensuring material safety and compliance with international potable water standards for municipal and commercial water supply applications.

The WS-CER-001 cation exchange resin is purpose-built for water softening and hardness removal across a comprehensive spectrum of applications. In municipal drinking water treatment, it is deployed in large-scale pressure vessels for centralized softening of groundwater and surface water sources, reducing total hardness from typical influent levels of 200-500 mg/L as CaCO3 to below 10 mg/L, improving taste, reducing soap consumption, and preventing scale formation in distribution networks and end-user plumbing systems.

For industrial boiler feed water pretreatment, WS-CER-001 serves as the primary softening stage upstream of reverse osmosis membranes or demineralization trains, protecting downstream equipment from calcium and magnesium scale deposition that would otherwise reduce heat transfer efficiency and increase energy consumption. In commercial laundry and hospitality operations, the resin delivers consistent soft water that enhances detergent effectiveness, reduces linen wear, and extends equipment service life. Additional applications include cooling tower makeup water treatment, where hardness removal minimizes scale formation on heat exchange surfaces, and food and beverage processing, where soft water is essential for consistent product quality in brewing, bottling, and dairy operations. The resin is also suitable for residential point-of-entry (POE) systems, providing whole-house water softening in compact, automated valve-controlled configurations requiring minimal homeowner maintenance.

WS-CER-001 is supplied in moisture-sealed 25-liter polyethylene bags or 1000-liter flexible intermediate bulk containers with integral moisture-barrier liners to maintain the specified 45-50% moisture content during storage and international transport. All packaging configurations are available on heat-treated ISPM-15 compliant wooden pallets with stretch-wrapped weather protection for containerized ocean freight. Each production batch is subjected to a comprehensive quality control protocol including exchange capacity titration, particle size distribution measurement by laser diffraction, moisture content analysis by Karl Fischer titration, whole bead integrity inspection, and hardness breakthrough performance validation in a standardized test column. A detailed certificate of analysis is provided with every shipment. We retain retention samples from every production lot for a minimum of 24 months and maintain full material traceability from monomer receipt through finished product dispatch. Our quality management system is certified to ISO 9001:2015, and WS-CER-001 carries NSF/ANSI 61 certification for drinking water system components, with annual surveillance audits conducted by accredited third-party laboratories.
