ACD-500 Chelating Resin Boiler Feed Water Softening Calcium Magnesium Removal 0.315-1.25mm Beads
Product Details:
| Place of Origin: | Shaanxi, China |
| Brand Name: | Sphelite |
| Certification: | ISO 9001:2015 |
| Model Number: | ACD-500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Liters |
|---|---|
| Price: | USD 6.5-12.5 / Liter |
| Packaging Details: | 25L kraft paper bags with PE liner, 20 bags per pallet, export-grade pallets |
| Delivery Time: | 7-15 days after payment |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2000 Metric Tons per Month |
|
Detail Information |
|||
| Brand: | Sphelite | Model Number: | ACD-500 |
|---|---|---|---|
| CAS No.: | 9003-70-7 | Functional Group: | Aminophosphonic Acid |

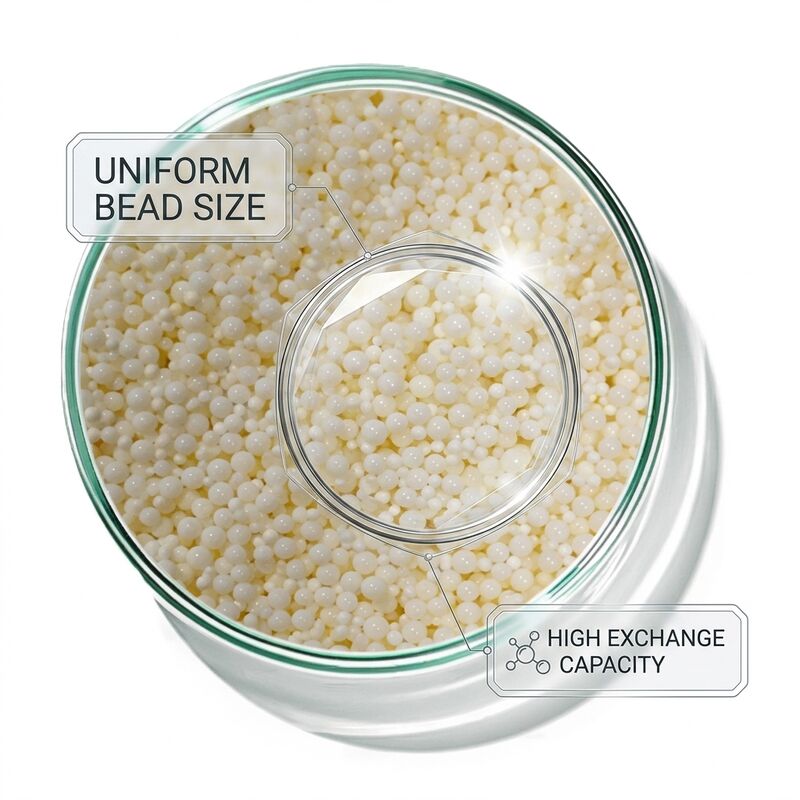

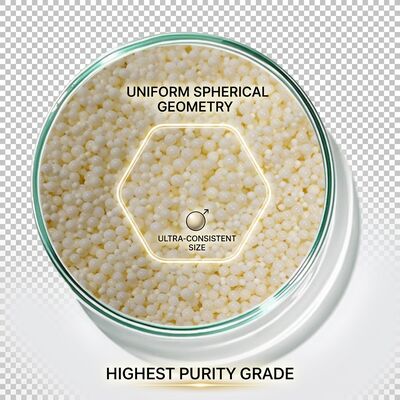

| Appearance: | Light Yellow Spherical Beads | Particle Size Range: | 0.315-1.25 Mm (>=95%) |
| Moisture Content: | 50-60% | Shipping Weight: | 0.63-0.76 G/mL |
| True Density: | 1.05-1.22 G/mL | Sphericity After Attrition: | >=90% |
| PH Range: | 2-9 | Processing Accuracy: | <0.5 Mg/L |
| Purity: | 99% | Type: | Synthetic Resin And Plastics |
| Application: | Boiler Feed Water Softening, Scale Prevention | ||
| Highlight: | chelating resin boiler feed water softening,chelating resin calcium magnesium removal,chelating resin 0.315-1.25mm beads |
||
Product Description
Product Overview
Sphelite ACD-500 is a premium-grade aminophosphoric acid chelating resin specially developed for calcium (Ca2+) and magnesium (Mg2+) ion extraction. It is widely used to soften boiler feed water, preventing scale deposition on heat exchange surfaces, economizers and steam drums. With remarkable mechanical durability and efficient ion exchange kinetics, ACD-500 delivers reliable, long-term softening performance in continuous industrial operation.
Key Features
- Deep Ca/Mg removal: Selectively adsorbs calcium and magnesium ions, reducing hardness to below 0.5 mg/L processing accuracy.
- Scale prevention: Protects boilers, heat exchangers and pipelines from hard scale, extending equipment service life.
- High mechanical strength: Sphericity after attrition ≥ 90% ensures low resin loss and stable bed operation.
- Wide working range: Effective across pH 2-9 with true density 1.05-1.22 g/ml, suitable for diverse feed water qualities.
- High purity: 99% purity aminophosphonic acid matrix minimizes organic leakage into treated water.
Technical Specifications
| S/N | Items | Technical Indexes |
|---|---|---|
| 1 | Appearance | Light Yellow spherical beads |
| 2 | Particle size range (mm) ≥ 95% | 0.315-1.25 |
| 3 | Moisture Content (%) | 50-60 |
| 4 | Shipping weight (g/ml) | 0.63-0.76 |
| 5 | True density (g/ml) | 1.05-1.22 |
| 6 | Sphericity after attrition (%) ≥ | 90 |
| 7 | pH | 2-9 |
| 8 | Processing accuracy (mg/l) < | 0.5 |
Application Scenarios
- Boiler feed water softening in power plants and industrial steam systems
- Scale prevention for cooling water circulation and heat exchange systems
- Hardness removal in process water for textile, paper and food industries
- Pretreatment stage before reverse osmosis and EDI systems
Our Strengths
Production Capacity: Our plant covers an area of 100,000 square meters with an annual output capacity of 24,000 metric tons, ensuring stable supply and consistent quality.
Quality Control: All raw materials are tested before production, and only qualified finished products are packaged after strict process control. We are ISO 9001:2015 certified.
After-sales Service: We provide comprehensive online technical support, including Q&A sessions and process optimization guidance for all our resin products.
Customization & Delivery: Flexible on-demand customization is available, and samples can be dispatched within one week.
FAQ
Q1: What are your advantages?
A: Our delivery time is guaranteed. We use environment-friendly production lines and are located in one of China's top 20 chemical industrial parks, near Tianjin and Qingdao ports, offering lower transportation costs.
Q2: How about the quality of your products?
A: We test all raw materials before production. After production and testing, only qualified products are packaged. We strictly follow the production process.
Q3: Can I get a free sample?
A: Yes, a 200g free sample is available; you only need to cover the courier fee.
