ASD-003 Weak Base Anion Exchange Resin Iron Removal Steel Pickling Hydrochloric Acid Regeneration
Product Details:
| Place of Origin: | Shaanxi, China |
| Brand Name: | Sphelite |
| Certification: | ISO 9001:2015 |
| Model Number: | ASD-003 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Liters |
|---|---|
| Price: | USD 4.30 / Liter |
| Packaging Details: | 25kg woven bag with inner plastic liner, or 1000L bulk bag, export-grade pallet |
| Delivery Time: | 3-7 working days for stock, 15-25 days for production |
| Payment Terms: | T/T, L/C, PayPal, Western Union |
| Supply Ability: | 24000 Metric Tons per Year |
|
Detail Information |
|||
| CAS No.: | 122560-63-8 | MF: | C8H8 |
|---|---|---|---|
| Type: | Weak Base Anion Exchange Resin | Purity: | 99.9% |

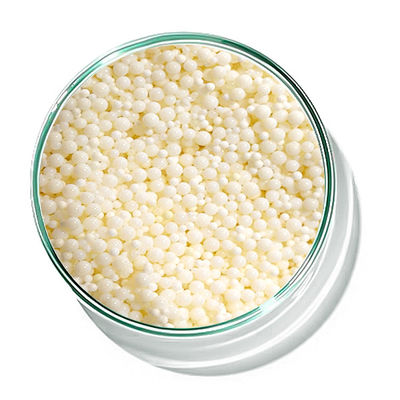

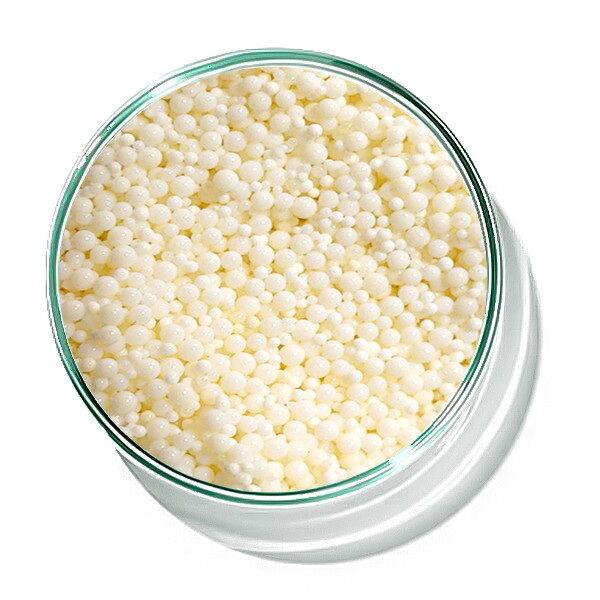

| Appearance: | Opalescent To Pale Yellow Opaque Globular Particles | Material: | Styrene |
| Polymer Structure: | Macroporous Polystyrene-divinylbenzene Copolymer | Functional Group: | Weak Base Tertiary Amine (-N(CH3)2) |
| Ionic Form: | Free Base (OH-) | Particle Size Range: | 0.315-1.25 Mm (>=95%) |
| Moisture Content: | 48-60% | Wet Apparent Density: | 0.65-0.72 G/mL |
| True Density: | 1.03-1.08 G/mL | Total Exchange Capacity: | >=1.6 Mmol/g |
| Target Pollutant: | Iron Ions (Fe3+/Fe2+) In Hydrochloric Acid | Function: | Fe Ion Removal From HCl Solution |
| Regeneration: | Pure Water Regeneration, High Regeneration Efficiency | Packing: | 25kg/bag |
| Application: | Iron Removal From Hydrochloric Acid Pickling Liquor In Steel Plants | Typical HCl Concentration: | High Concentration Pickling Acid |
| Service: | Fixed Bed Iron Removal Before Acid Regeneration | ||
| Highlight: | Steel Pickling Acid Iron Removal,Hydrochloric Acid Regeneration Resin,Weak Base Anion Exchange Resin |
||
Product Description
PRODUCT INFORMATION
ASD-003 Resin for Iron Removal in Steel Pickling Hydrochloric Acid
ASD-003 is a macroporous weak base anion exchange resin with a polystyrene backbone, specifically formulated to remove iron ions from high concentration hydrochloric acid, and is widely known as a “special resin for hydrochloric acid iron removal.” In steel pickling lines the resin pulls dissolved iron out of the spent acid so the acid can be regenerated and returned to the pickling bath, cutting fresh acid consumption and spent acid disposal.
KEY FEATURES
- Targets dissolved iron ions in high concentration hydrochloric acid with high selectivity.
- High regeneration efficiency using pure water keeps operating cost low and avoids heavy chemical dosing.
- Substantial exchange capacity allows long service cycles between regenerations.
- Robust anti-pollution resistance tolerates the suspended solids and organics typical of pickling liquor.
- Excellent mechanical strength and >90% sphericity after attrition for long media life.
- Enables closed-loop acid regeneration, reducing fresh acid purchase and waste acid discharge.
TECHNICAL SPECIFICATIONS
| S/N | Items | Technical Indexes |
|---|---|---|
| 1 | Appearance | Opalescent to pale yellow opaque globular particles |
| 2 | Particle size range (mm) ≥95% | 0.315-1.25 |
| 3 | Moisture Content (%) | 48-60 |
| 4 | Wet apparent density (g/mL) | 0.65-0.72 |
| 5 | True density (g/mL) | 1.03-1.08 |
| 6 | Sphericity after attrition (%) ≥ | 90 |
| 7 | Total exchange capacity (mmol/g) ≥ | 1.6 |
APPLICATION SCENARIOS
- Hydrochloric acid regeneration and iron removal in steel pickling lines.
- Continuous pickling and push-pull pickling acid purification systems.
- Recovery of low-iron hydrochloric acid for reuse in the pickling bath.
- Reduction of spent pickling acid volume and neutralization cost.
- Iron control ahead of acid recovery by spray roasting or membrane processes.
OUR STRENGTHS
Production Capacity
Sphelite operates a 100,000 m² production base with an annual output of 24,000 metric tons of ion exchange and adsorption materials.
Quality System
All raw materials are tested before production; finished products are packaged only after strict quality control under ISO 9001:2015 procedures.
Technical Service
Online technical Q&A, application guidance and after-sales support are provided by our engineering team.
Logistics
Located near Tianjin Port and Qingdao Port, we offer prompt delivery for both sample and bulk orders.
FAQ
Q: Where is ASD-003 installed in a pickling acid loop?
It is typically placed on a side-stream or full-flow basis before the pickling bath return line, removing iron so the regenerated acid stays within the target iron window.
Q: How is the resin regenerated?
ASD-003 is regenerated with pure water thanks to its high regeneration efficiency, which keeps the operating cost low and avoids the chemical consumption of conventional brine processes.
Q: Can I get a free sample for testing?
Yes, a free sample is available and only the courier cost is covered by the buyer. Share your HCl concentration, iron content and flow rate for a sizing recommendation.
Q: What is the delivery time?
Stock grades ship in 3-7 working days; customized packaging or container orders take 15-25 days after confirmation.
Q: Do you provide quality certificates?
Yes, all products meet international quality standards and pass ISO 9001:2015 procedures. We can provide certificates and test reports for your reference.
Ready to Start Your Project?
Send us your HCl concentration, iron content and flow rate, and our engineers will reply within 24 hours with media selection, dosage and quotation.
Free samples available – courier cost to be covered by the buyer.
