ASD-003 Macroporous Anion Exchange Resin Iron Removal High Concentration Hydrochloric Acid Refining
Product Details:
| Place of Origin: | Shaanxi, China |
| Brand Name: | Sphelite |
| Certification: | ISO 9001:2015 |
| Model Number: | ASD-003 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Liters |
|---|---|
| Price: | USD 4.30 / Liter |
| Packaging Details: | 25kg woven bag with inner plastic liner, or 1000L bulk bag, export-grade pallet |
| Delivery Time: | 3-7 working days for stock, 15-25 days for production |
| Payment Terms: | T/T, L/C, PayPal, Western Union |
| Supply Ability: | 24000 Metric Tons per Year |
|
Detail Information |
|||
| CAS No.: | 122560-63-8 | MF: | C8H8 |
|---|---|---|---|
| Type: | Weak Base Anion Exchange Resin | Purity: | 99.9% |
| Appearance: | Opalescent To Pale Yellow Opaque Globular Particles | Material: | Styrene |
| Polymer Structure: | Macroporous Polystyrene-divinylbenzene Copolymer | Functional Group: | Weak Base Tertiary Amine (-N(CH3)2) |
| Ionic Form: | Free Base (OH-) | Particle Size Range: | 0.315-1.25 Mm (>=95%) |
| Moisture Content: | 48-60% | Wet Apparent Density: | 0.65-0.72 G/mL |
| True Density: | 1.03-1.08 G/mL | Total Exchange Capacity: | >=1.6 Mmol/g |
| Target Pollutant: | Iron Ions (Fe3+/Fe2+) In Hydrochloric Acid | Function: | Fe Ion Removal From HCl Solution |
| Regeneration: | Pure Water Regeneration, High Regeneration Efficiency | Packing: | 25kg/bag |
| Application: | Iron Removal And Refining Of High Concentration Hydrochloric Acid Streams | Typical HCl Concentration: | High Concentration Hydrochloric Acid |
| Regeneration Note: | Pure Water Regeneration, No Brine Required | ||
| Highlight: | High Concentration HCl Refining,Macroporous Iron Removal Resin,Water Regeneration Anion Resin |
||
Product Description
PRODUCT INFORMATION
ASD-003 Macroporous Resin for Iron Removal in High Concentration Hydrochloric Acid
ASD-003 is a macroporous weak base anion exchange resin with a polystyrene backbone, specifically formulated for the removal of iron ions from high concentration hydrochloric acid. It stands out for its high regeneration efficiency, substantial exchange capacity, robust anti-pollution resistance and excellent mechanical strength, and it regenerates with pure water for cost-effective acid refining.
KEY FEATURES
- Purpose-built for iron removal from high concentration hydrochloric acid streams.
- Pure water regeneration delivers high efficiency and low chemical consumption.
- Substantial exchange capacity supports long cycles and low resin volume.
- Robust anti-pollution resistance and excellent mechanical strength for long service life.
- Enables acid refining and reuse, reducing fresh acid demand and waste discharge.

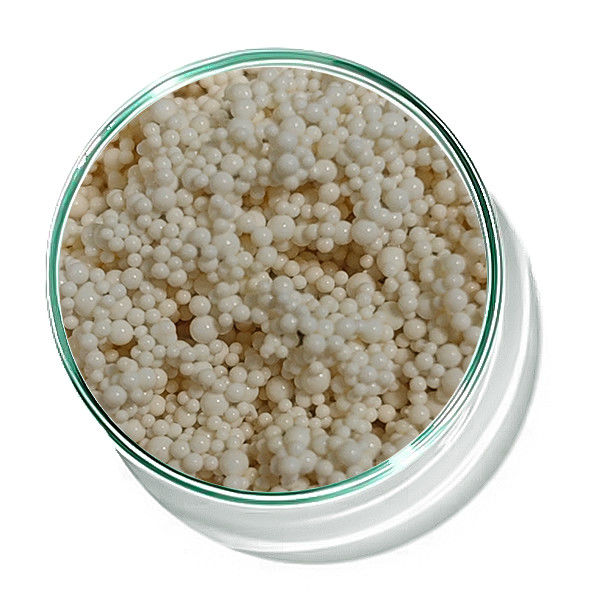

- Opalescent to pale yellow opaque spherical beads with >90% sphericity after attrition.
TECHNICAL SPECIFICATIONS
| S/N | Items | Technical Indexes |
|---|---|---|
| 1 | Appearance | Opalescent to pale yellow opaque globular particles |
| 2 | Particle size range (mm) ≥95% | 0.315-1.25 |
| 3 | Moisture Content (%) | 48-60 |
| 4 | Wet apparent density (g/mL) | 0.65-0.72 |
| 5 | True density (g/mL) | 1.03-1.08 |
| 6 | Sphericity after attrition (%) ≥ | 90 |
| 7 | Total exchange capacity (mmol/g) ≥ | 1.6 |
APPLICATION SCENARIOS
- Refining of high concentration hydrochloric acid by iron removal.
- Acid purification loops where iron must be held at low levels.
- Recovery and reuse of hydrochloric acid to cut operating cost.
- Feed conditioning for iron-sensitive chemical and metallurgical processes.
- Acid cleaning and pickling systems requiring low-iron working acid.
OUR STRENGTHS
Production Capacity
Sphelite operates a 100,000 m² production base with an annual output of 24,000 metric tons of ion exchange and adsorption materials.
Quality System
All raw materials are tested before production; finished products are packaged only after strict quality control under ISO 9001:2015 procedures.
Technical Service
Online technical Q&A, application guidance and after-sales support are provided by our engineering team.
Logistics
Located near Tianjin Port and Qingdao Port, we offer prompt delivery for both sample and bulk orders.
FAQ
Q: Why choose water regeneration instead of brine?
ASD-003 has high regeneration efficiency with pure water, which avoids the salt consumption and additional waste stream of conventional brine regeneration, lowering operating cost.
Q: How is the resin regenerated?
ASD-003 is regenerated with pure water thanks to its high regeneration efficiency, which keeps the operating cost low and avoids the chemical consumption of conventional brine processes.
Q: Can I get a free sample for testing?
Yes, a free sample is available and only the courier cost is covered by the buyer. Share your HCl concentration, iron content and flow rate for a sizing recommendation.
Q: What is the delivery time?
Stock grades ship in 3-7 working days; customized packaging or container orders take 15-25 days after confirmation.
Q: Do you provide quality certificates?
Yes, all products meet international quality standards and pass ISO 9001:2015 procedures. We can provide certificates and test reports for your reference.
