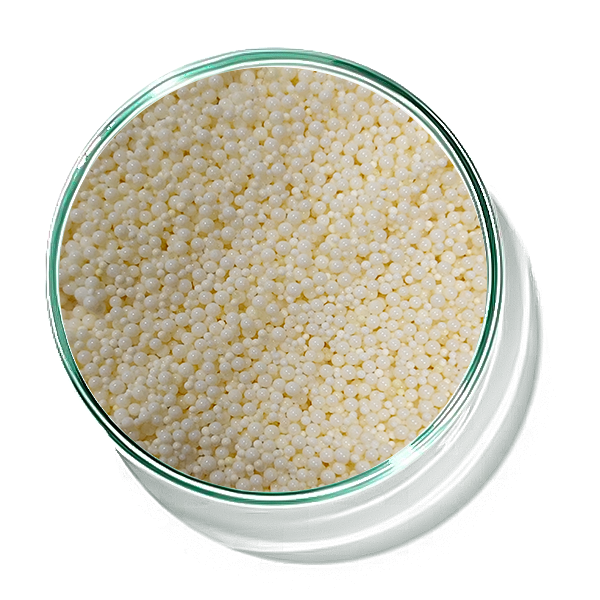

ACD-800A Sphelite Chelating Resin 0.3-0.6mm Beads High Selectivity Gallium Ion Adsorption
Product Details:
| Place of Origin: | China |
| Brand Name: | ADVSORBENT |
| Certification: | ISO 9001:2015 |
| Model Number: | ACD-800A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25 Liters |
|---|---|
| Price: | USD 30-60 / Liter |
| Packaging Details: | 25 liters/bag, 50 liters/drum (dry type), 200 liters/drum, 1 ton pallet, or customized |
| Delivery Time: | 7-15 working days after order confirmation |
| Payment Terms: | T/T, L/C, Western Union, PayPal |
| Supply Ability: | 1000 Tons per Year |
|
Detail Information |
|||
| Structure: | Styrene-Acrylonitrile Copolymer | Appearance: | White To Pale Yellow Opaque Spherical Beads |
|---|---|---|---|
| Particle Size Range: | 0.3-0.6 Mm (95% Minimum) | Shipping Weight: | 0.72-0.82 G/ml |
| Moisture Content: | 45-55% | Sphericity After Attrition: | 90% Minimum |
| Gallium Adsorption Capacity: | 15 G/L Minimum | Application: | Selective Gallium Extraction From Bayer Process Alumina Mother Liquor |
| Highlight: | Sphelite chelating resin beads,gallium ion adsorption resin,0.3-0.6mm chelating resin |
||
Product Description
Overview
ACD-800A delivers selective gallium capture through chelating functional groups anchored on a styrene-acrylonitrile copolymer backbone. The uniform 0.3-0.6mm spherical beads keep a sphericity of at least 90% after attrition testing, so the bed stays clean and pressure drop stays stable through repeated adsorption and desorption cycles in hydrometallurgical service.
Bead Quality Data
- Particle size range 0.3-0.6mm, 95% minimum, screened for tight distribution.
- Sphericity after attrition 90% minimum, limiting fines generation and resin make-up cost.
- Shipping weight 0.72-0.82 g/ml and moisture content 45-55%.
- Gallium adsorption capacity 15 g/L minimum, measured on Bayer-liquor feed.
Technical Indexes
| Appearance | White to pale yellow opaque spherical beads |
| Structure | Styrene-Acrylonitrile Copolymer |
| Particle Size Range (mm) | ≥ 95% 0.3-0.6 |
| Shipping Weight (g/ml) | 0.72-0.82 |
| Moisture Content (%) | 45-55 |
| Sphericity after Attrition (%) | ≥ 90 |
| Gallium Adsorption Capacity (g/L) | ≥ 15 |
Selectivity and Capacity
Because the active groups are chelating rather than strongly acidic or basic, ACD-800A binds Ga3+ preferentially in the presence of large excesses of sodium, aluminium and other competing cations. Working capacity is maintained at 15 g/L or above, allowing compact columns and low eluate volumes.
Key Applications
- Selective gallium adsorption from Bayer process alumina mother liquor.
- Gallium polishing and purification before cementation or electrolysis.
- Recovery of gallium from hydrometallurgical process and recycle streams.
Operating Conditions
Pre-treatment: Rinse resin with 1-2BV pure water.
Adsorption Conditions: Suspended solids (SS) ≤ 1 ppm.
Regeneration:
- Regenerants: 4-6BV 5% H2SO4 and 2BV 5.0 mol/L NaOH
- Concentration: 5% H2SO4, 5.0 mol/L NaOH
- Flow rates: 1-1.5BV/h (H2SO4), 2BV/h (water & NaOH)
- Rinse resin with 2-4BV pure water after acid elution prior to NaOH activation
Packaging
25 liters/bag · >25KG/bag · 50 liters/drum (dry type) · >200 liters/drum · >1 cbm on a pallet · 1 Ton on a pallet. Customized packaging is available to meet domestic and international transportation standards.
Storage
Storage temperature shall not exceed 90°C; store above 0°C in wet state. Keep the package sealed to prevent water loss. If the resin dries out, soak it in ethanol for about 2 hours, wash with clean water, then repackage or use. Prevent the beads from freezing and cracking in winter; if frozen, melt slowly at room temperature.
