ACD-800B Macroporous Chelating Resin Gallium Enrichment Alkaline Liquid Systems 0.315-1.25mm
Product Details:
| Place of Origin: | China |
| Brand Name: | ADVSORBENT |
| Certification: | ISO 9001:2015 |
| Model Number: | ACD-800B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25 Liters |
|---|---|
| Price: | USD 30-60 / Liter |
| Packaging Details: | 25 liters/bag, 25KG/bag, 50 liters/drum (dry type), 200 liters/drum, 1 cbm on a pallet, 1 ton on a pallet, or customized |
| Delivery Time: | 7-15 working days after order confirmation |
| Payment Terms: | T/T, L/C, Western Union, PayPal |
| Supply Ability: | 1000 Tons per Year |
|
Detail Information |
|||
| Structure: | Styrene-Acrylonitrile Copolymer | Appearance: | Yellow Opaque Spherical Beads |
|---|---|---|---|
| Particle Size Range: | 0.315-1.25 Mm (95% Minimum) | Shipping Weight: | 0.72-0.87 G/ml |
| Moisture Content: | 60-70% | Sphericity After Attrition: | 90% Minimum |
| Gallium Adsorption Capacity: | 3.5 G/L Minimum | Application: | Ga Extraction From Bayer-Process Alumina Mother Liquor |
| Highlight: | macroporous chelating resin gallium enrichment,alkaline liquid chelating resin 0.315-1.25mm,gallium enrichment chelating resin |
||
Product Description
Product Introduction

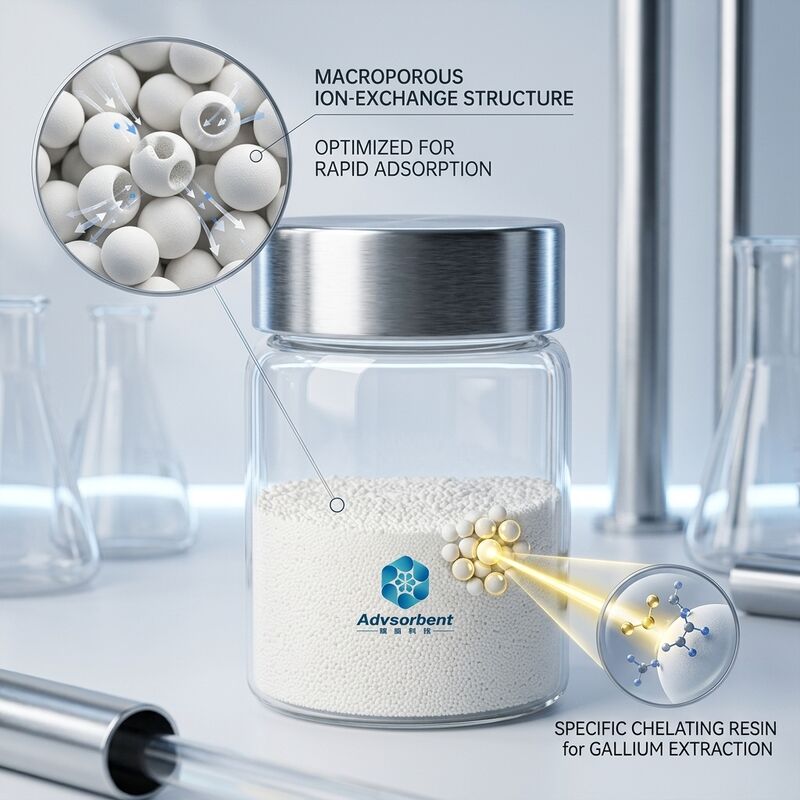

Sphelite ACD-800B is a macroporous chelating resin with a styrene-acrylonitrile copolymer matrix. Gallium-selective functional groups are grafted onto the polymer backbone, giving a coordination (chelation) working mechanism instead of simple ion exchange. The broad 0.315-1.25mm size range and 60-70% moisture content suit enrichment duties across a wide set of alkaline liquid systems.
Technical Indexes
| Appearance | Yellow opaque spherical beads |
| Structure | Styrene-Acrylonitrile Copolymer |
| Particle Size Range (mm) | ≥ 95% 0.315-1.25 |
| Shipping Weight (g/ml) | 0.72-0.87 |
| Moisture Content (%) | 60-70 |
| Sphericity after Attrition (%) | ≥ 90 |
| Gallium Adsorption Capacity (g/L) | ≥ 3.5 |
Key Applications
- "Ga" enrichment from various alkaline liquid systems
- "Ga" recovery from alkaline sodium aluminate liquor
- "Ga" extraction from Bayer-process alumina mother liquor
Application Notes
- Working capacity 3.5g/L minimum for gallium on alkaline feed.
- Rinse with 1-2BV pure water before the first adsorption cycle.
- Keep suspended solids at or below 1 ppm to protect the chelating groups.
- Elute with the Na2S·9H2O / NaOH mixed regenerant, then activate with 5.0mol/L NaOH.
Operating Conditions
Pre-treatment: Rinse resin with 1-2BV pure water.
Adsorption Conditions: SS ≤ 1 ppm.
Regeneration:
- Regenerants: 4~6BV mixed solution (0.8333mol/L Na₂S·9H₂O + 2.5mol/L NaOH) and 2BV 5.0mol/L NaOH
- Concentration: 0.8333mol/L Na₂S·9H₂O + 2.5mol/L NaOH, 5.0 mol/L NaOH
- Flowrates: 1-1.5BV/h (mixed eluent), 2BV/h (water & NaOH)
- Rinse resin with 2~4BV pure water twice before elution and prior to NaOH activation
Storage Proposal
The storage temperature of this material shall not be higher than 90°C. Stored above 0°C in wet state. In the storage state, keep the package sealed well to prevent water loss. In case of water loss, soak the dry resin in ethanol for about 2 hours, wash it with clean water and then repackage or use it. Prevent the spheroid from freezing and cracking in winter. If freezing is found, melt slowly at room temperature.
Packaging
ADVSORBENT provides a variety of packaging options, such as bags, drums, cartons, bulk bags and ton bags that meet the transportation standards at home and abroad. We also accept customized packaging according to customer requirements to ensure the safe and efficient delivery of products to each customer: 25 liters/bag · 25KG/bag · 50 liters/drum (dry type) · 200 liters/drum · 1 cbm on a pallet · 1 Ton on a pallet.
